Description

Product Description

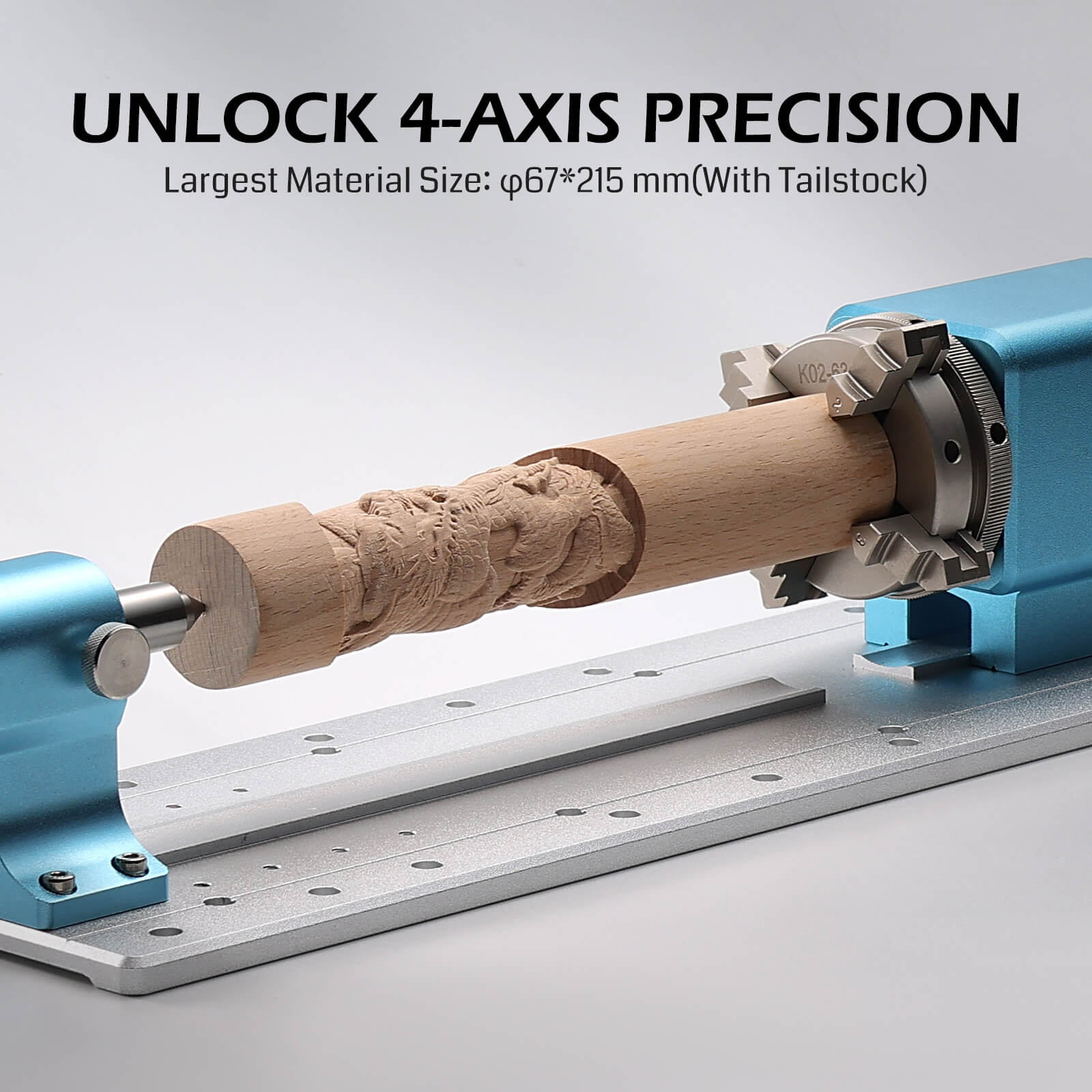

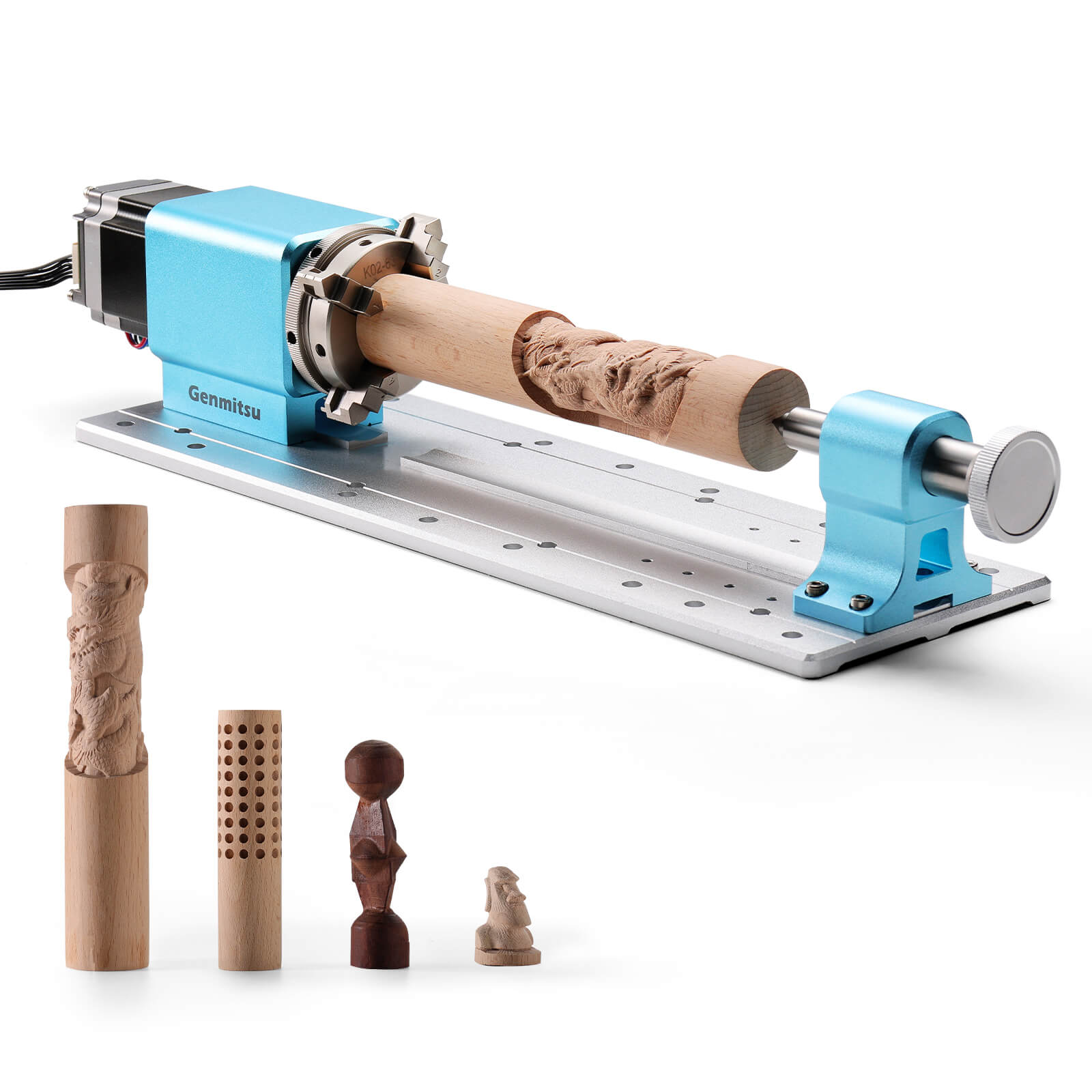

Unlock new possibilities with the Genmitsu 4th Axis Rotary Kit, designed to upgrade your 4030V2 CNC machine for 360° carving and intricate 3D/2D designs. Powered by a NEMA23 planetary gear stepper motor, it offers superior torque and precision. The kit accommodates materials with diameters from 2-67mm and lengths up to 275mm (without tailstock). With a 10:1 reduction ratio for precise control and a fast 480°/second rotation speed, it ensures accurate carvings. Easy to install and backed by global support, this kit is a seamless upgrade for your CNC experience.

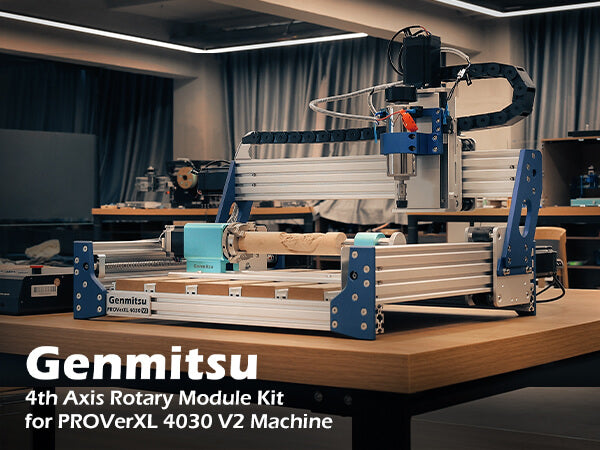

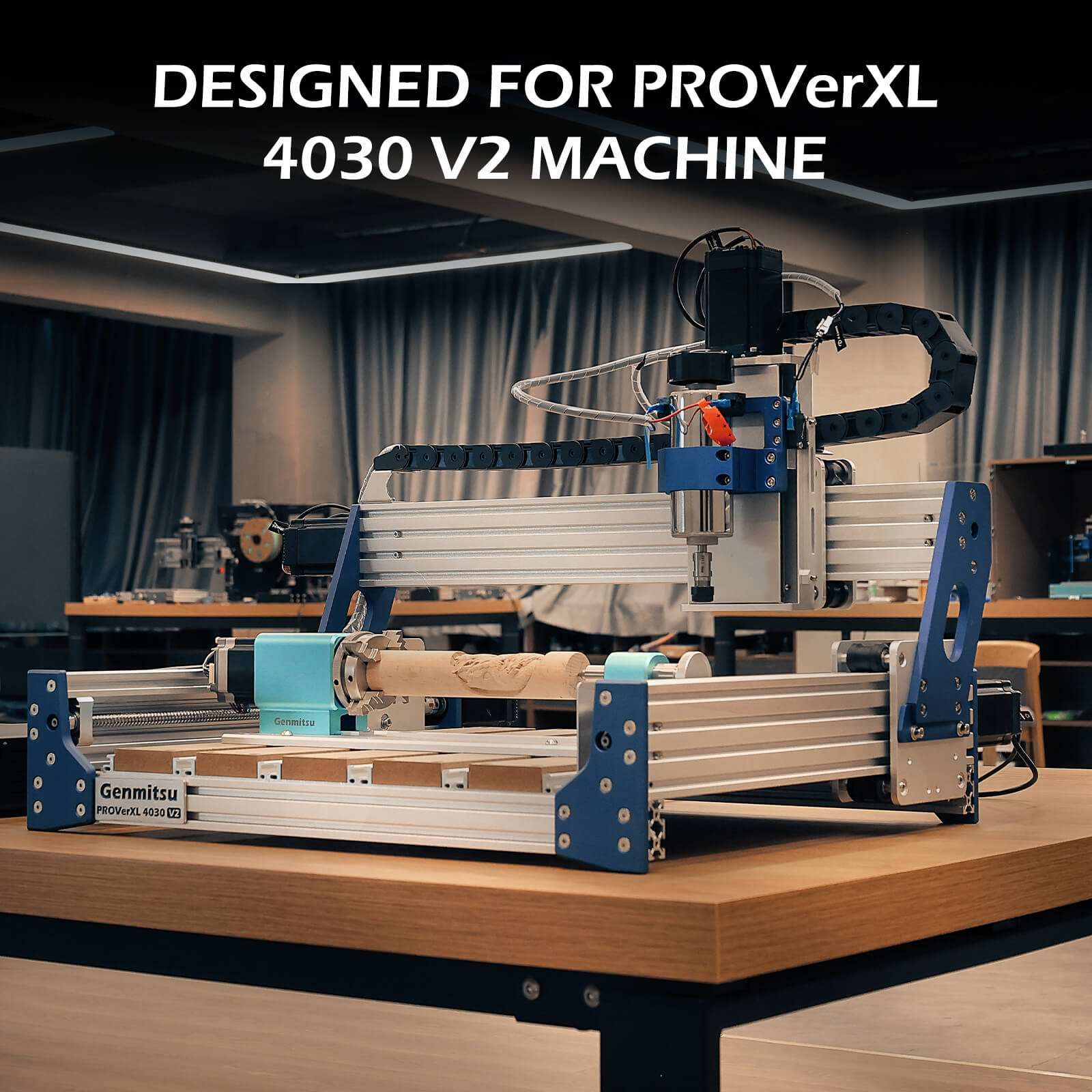

Rotary Module Kit for PROVerXL 4030 V2 CNC Router Details:

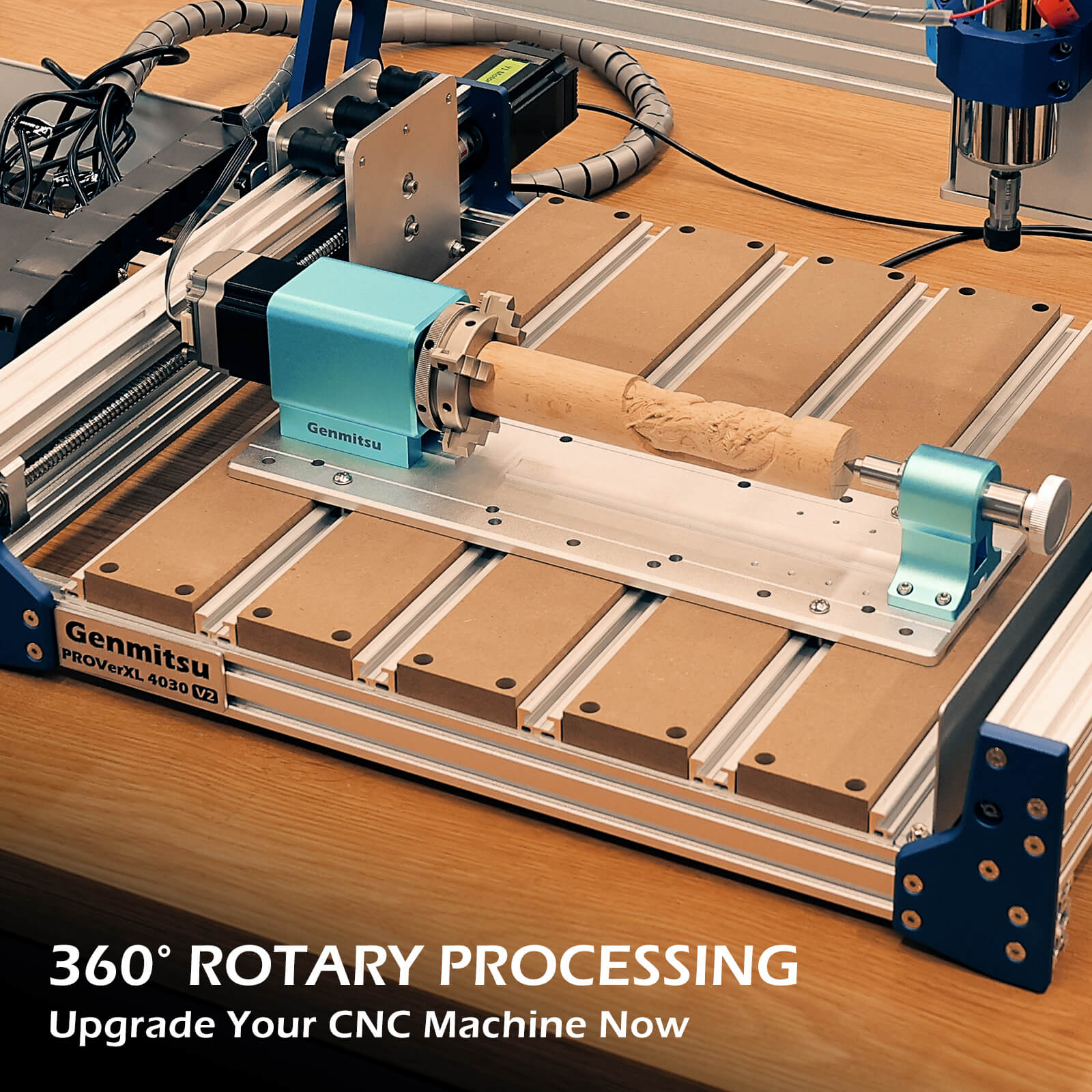

  • Unlock New Possibilities: Upgrade your 4030V2 CNC for enhanced 360° carving.

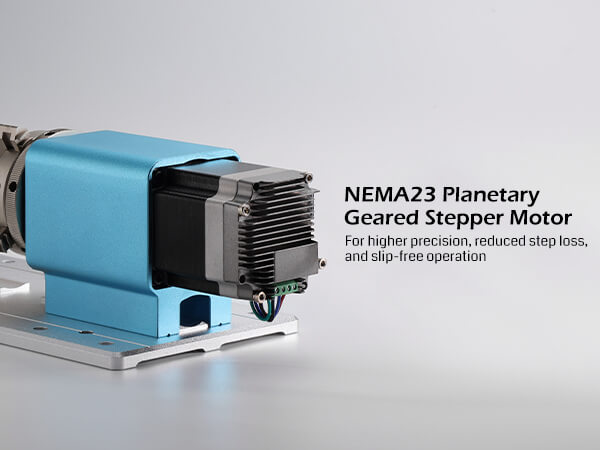

  • NEMA23 Planetary Gear Stepper Motor: Utilizes a NEMA23 motor for superior torque.

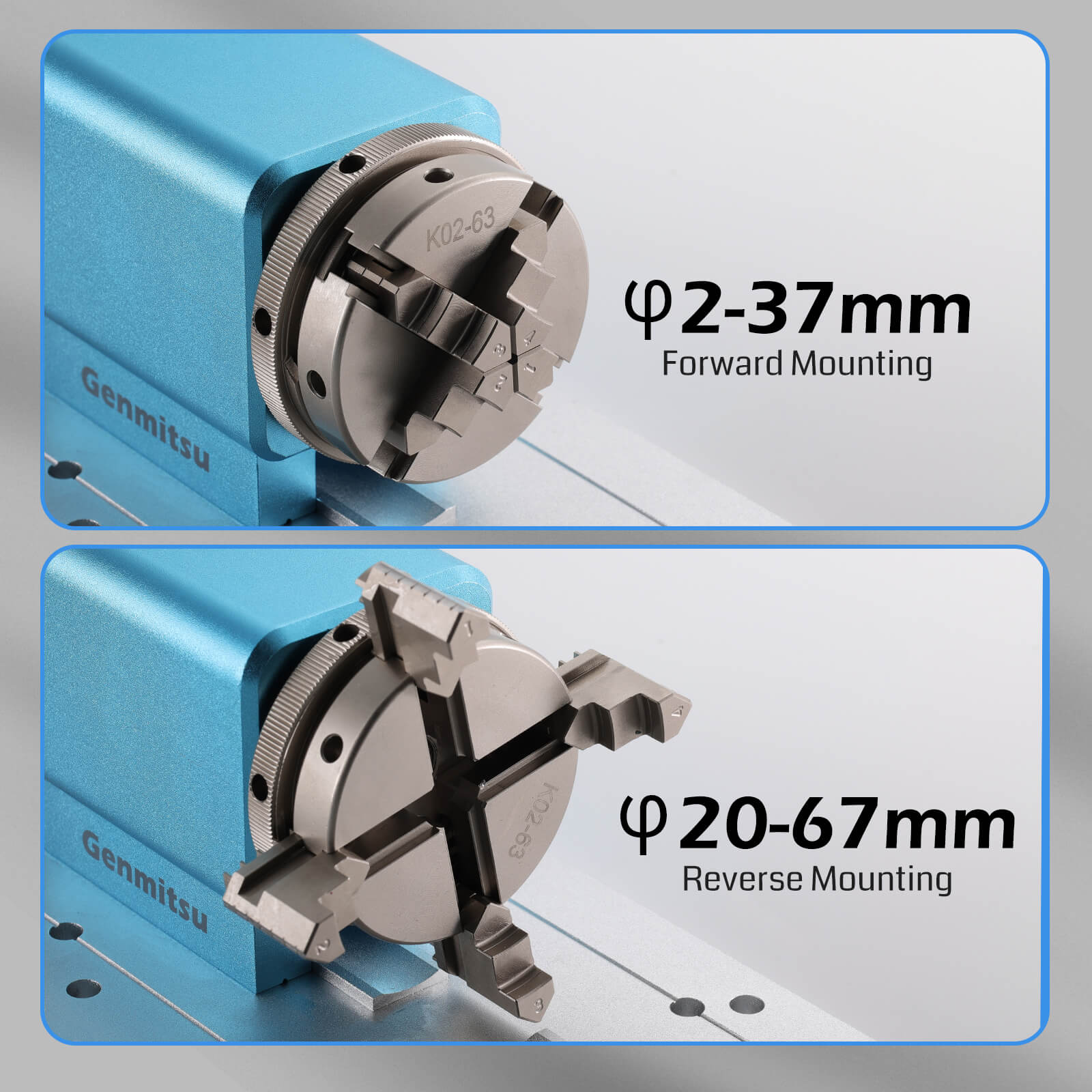

  • Versatile Material Compatibility: Supports materials from 2-67mm in diameter.

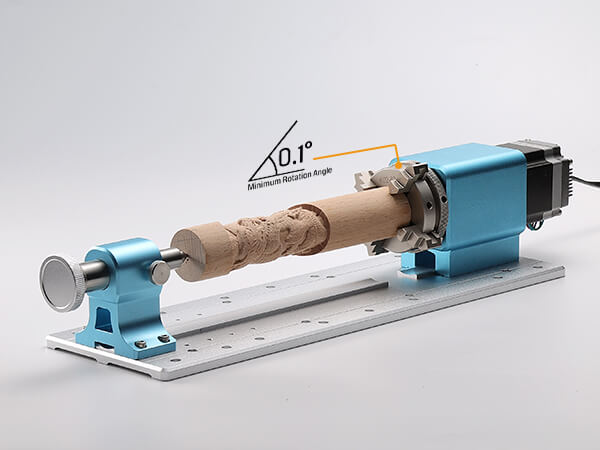

  • Precision Control: Offers 0.1° angle control and 480°/second rotation speed.
  • Easy Installation & Global Support: Designed for hassle-free installation with global support.

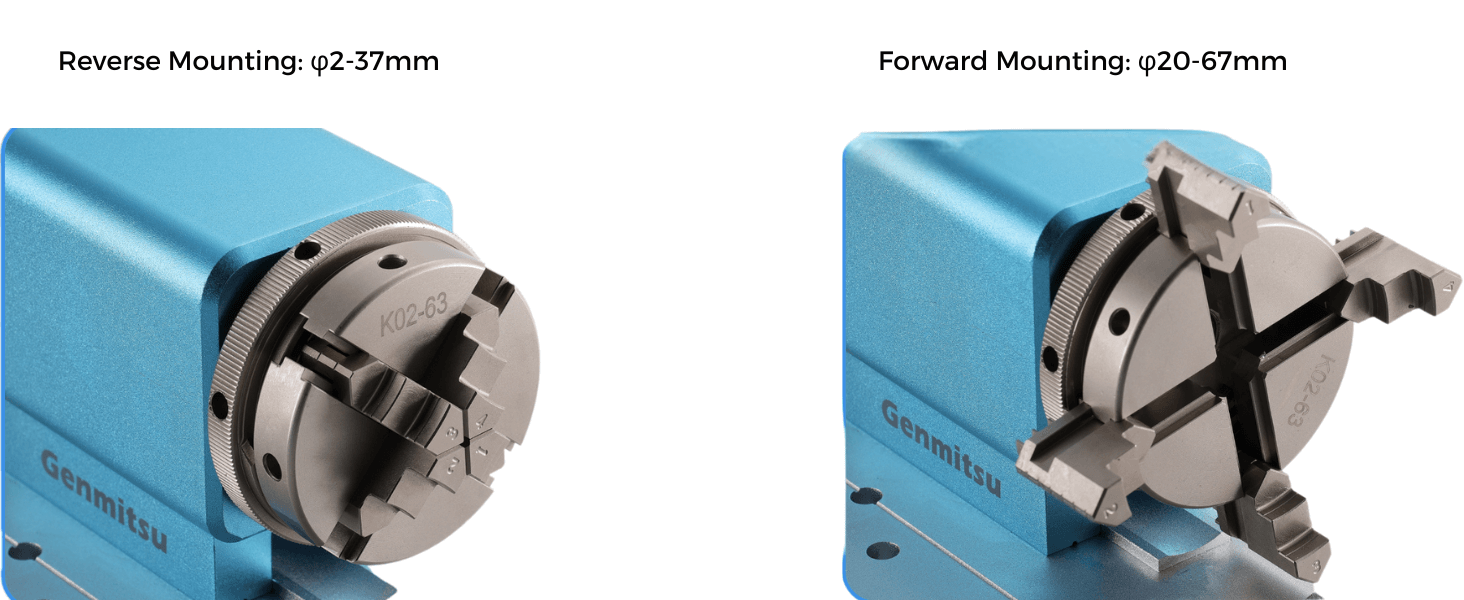

  • Flexible Mounting Solutions: Features clamps for various mounting options.



Specification

SPECIFICATIONS

  • Compatible CNC Machine

    PROVerXL 4030 V2

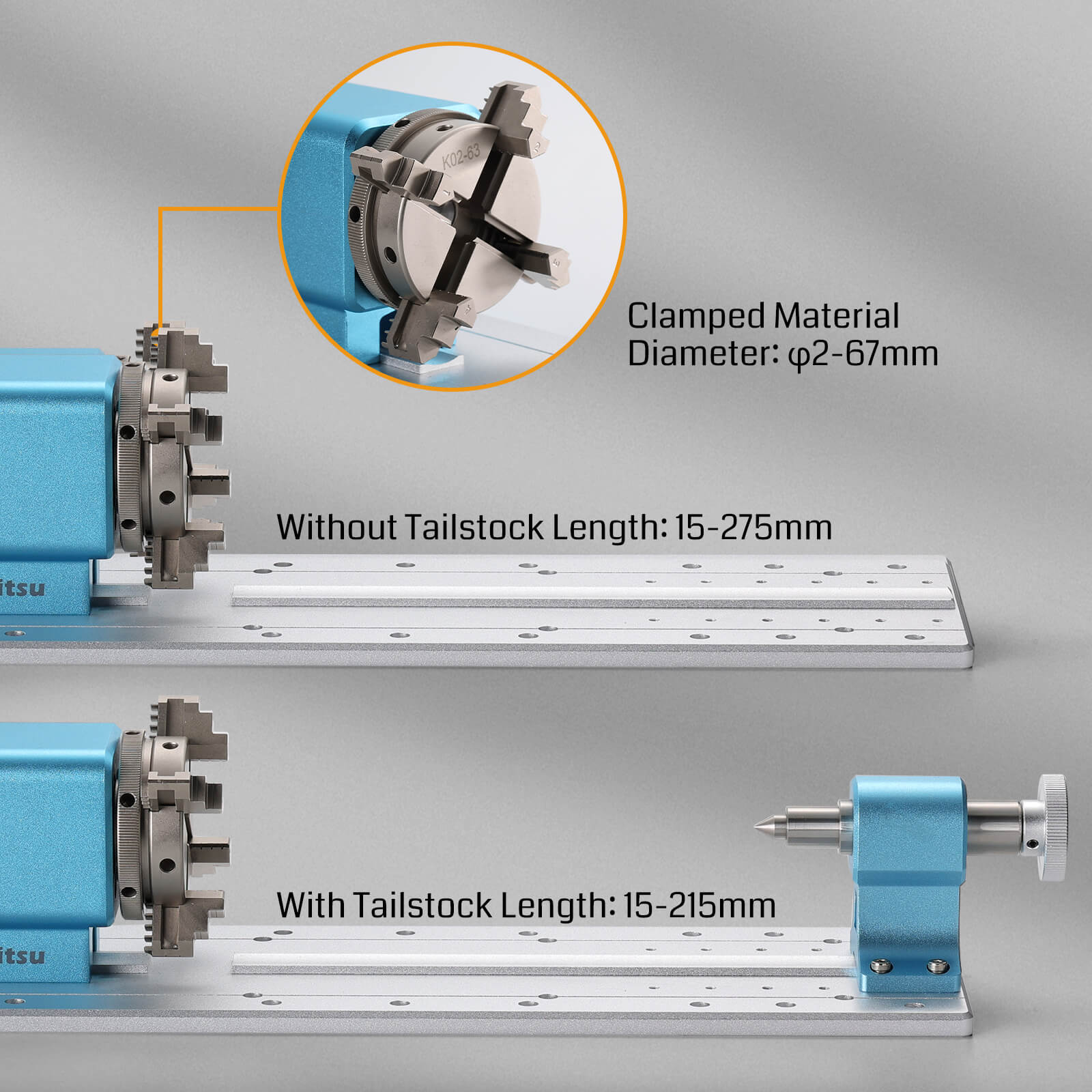

  • Clamped Material Size

    15-275mm
  • Clamped Material Diameter

    20-67mm

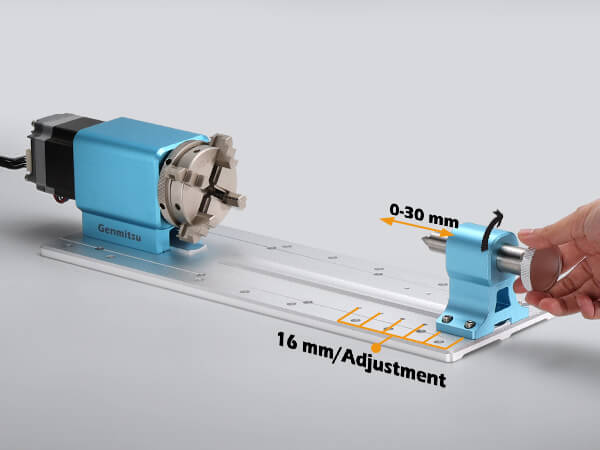

  • Tailstock Spacing Adjustment

    5 installation positions, spacing 16mm, adjustment range 16-81mm
  • Tailstock Center Adjustment Range

    0-30mm
  • Direct Electric Motor

    NEMA23 Planetary Geared Stepper Motor
  • Gear Ratio

    1
  • Max Rotate Speed

    480°/S
  • Unidirectional Maximum Rotation Angle

    33512 x 360°
  • Center Height

    60mm
  • Size

    470 x 125 x 105 mm (18.50” x 4.92” x 4.13”)
