Description
What Is a Galvo Laser?
A Galvo laser uses high-speed galvanometer mirrors to steer the laser beam instead of moving the entire laser head.
By deflecting the beam along the X and Y axes at extreme speeds, galvo systems achieve ultra-fast engraving with exceptional detail, making them the go-to choice for marking, engraving, and batch production.
Compared to traditional XY gantry lasers, galvo lasers are:
- Significantly faster
- More precise for fine details
- Ideal for small to mid-size parts, QR codes, and micro-text
That’s why galvo lasers are widely used in jewelry, electronics, tools, promotional products, and industrial marking.
Why Choose Kintix?
Not all galvo lasers are built the same. Kintix goes beyond traditional galvo limitations—combining speed, precision, and real-world usability.

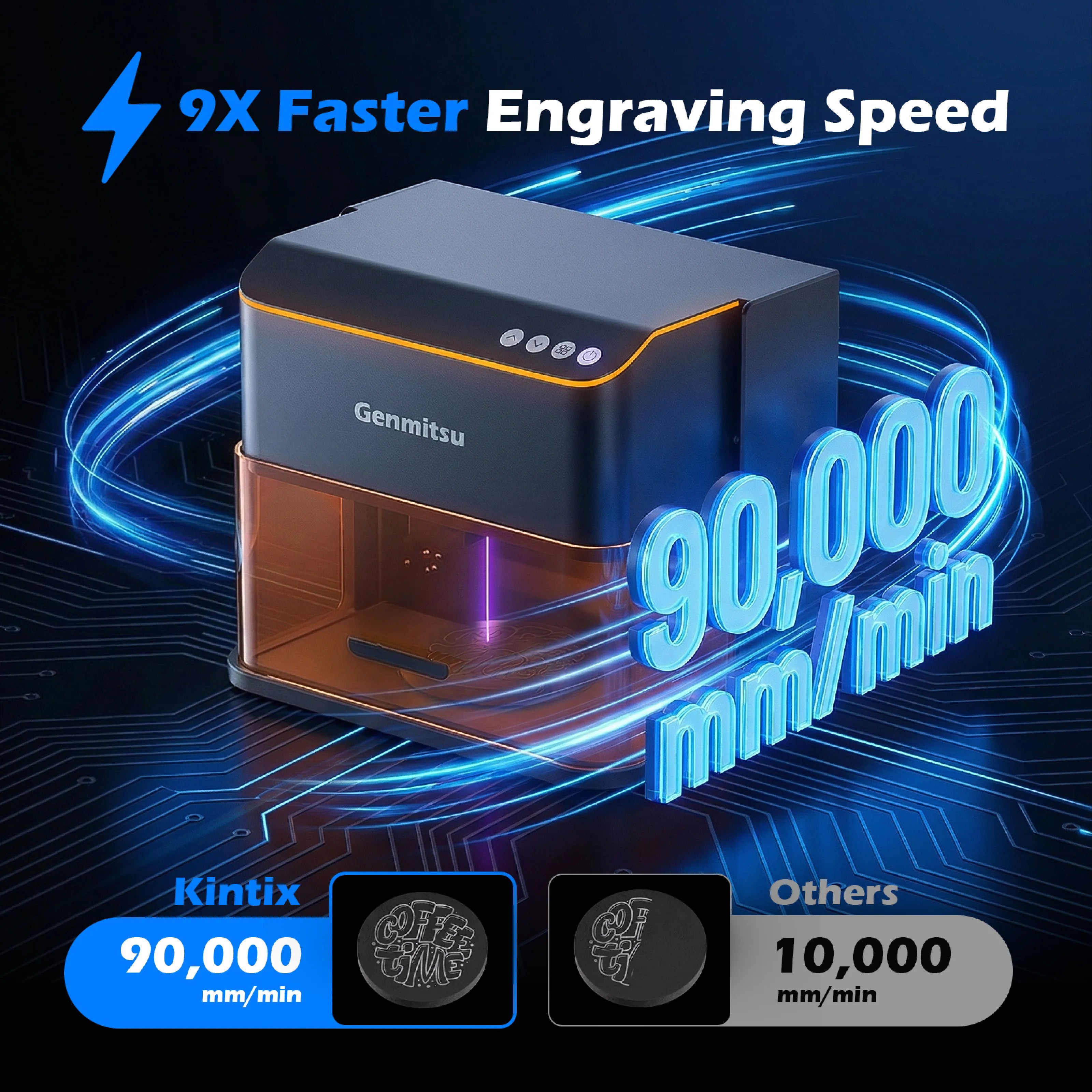

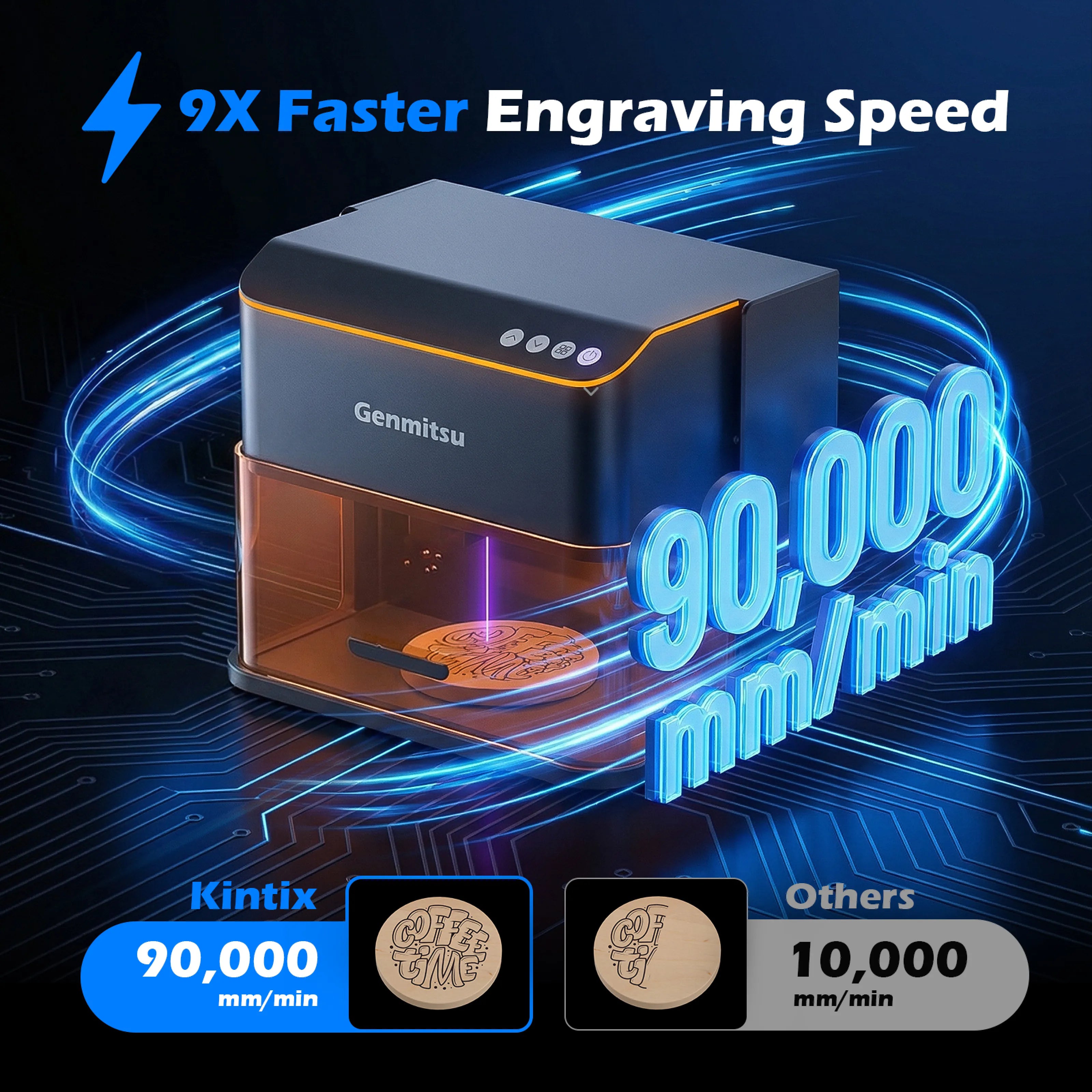

Production-Grade Speed
With engraving speeds up to 90,000 mm/min (1500 mm/s), Kintix is engineered for mass production—up to 3× faster than standard galvo systems.

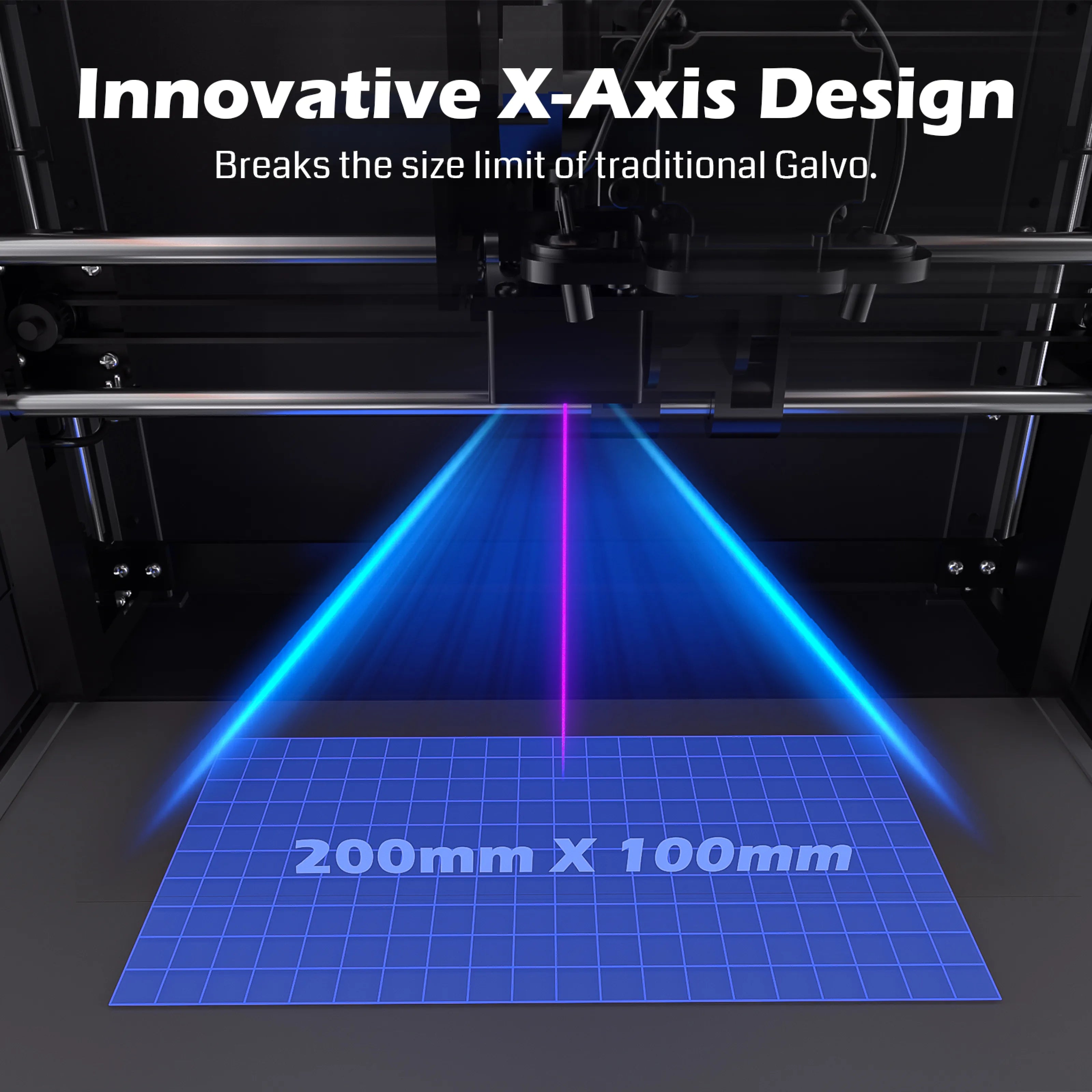

Expanded Working Area with Hybrid Design
Traditional galvo lasers are confined to small square fields.
Kintix integrates a linear X-axis rail to expand the engraving area to 200 × 100 mm, enabling longer parts and efficient batch processing—without sacrificing edge accuracy.

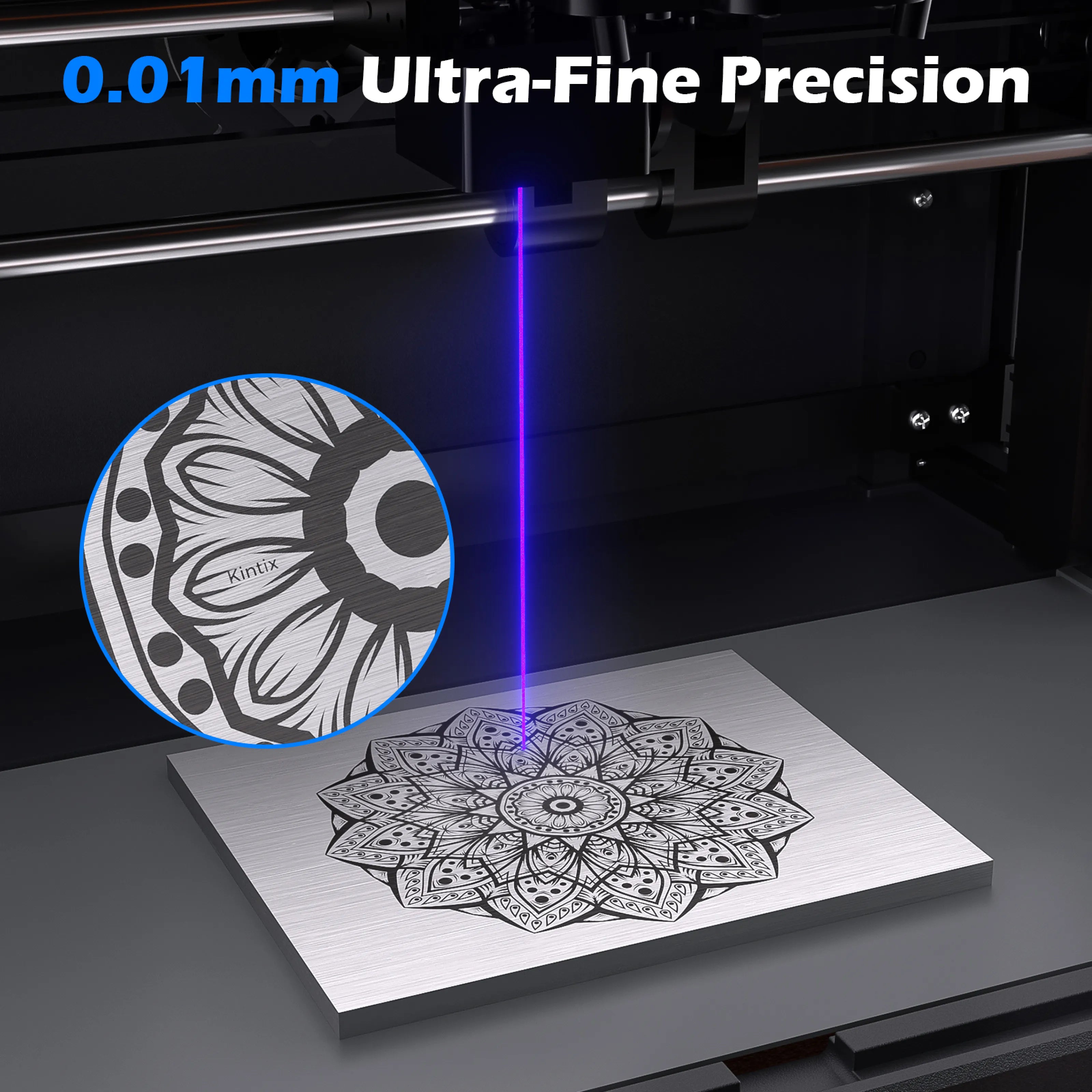

Ultra-Fine 0.01 mm Precision
A high-response galvanometer paired with a rigid, vibration-free structure delivers photorealistic detail, crisp QR codes, and clean micro-text across metals and coated materials.

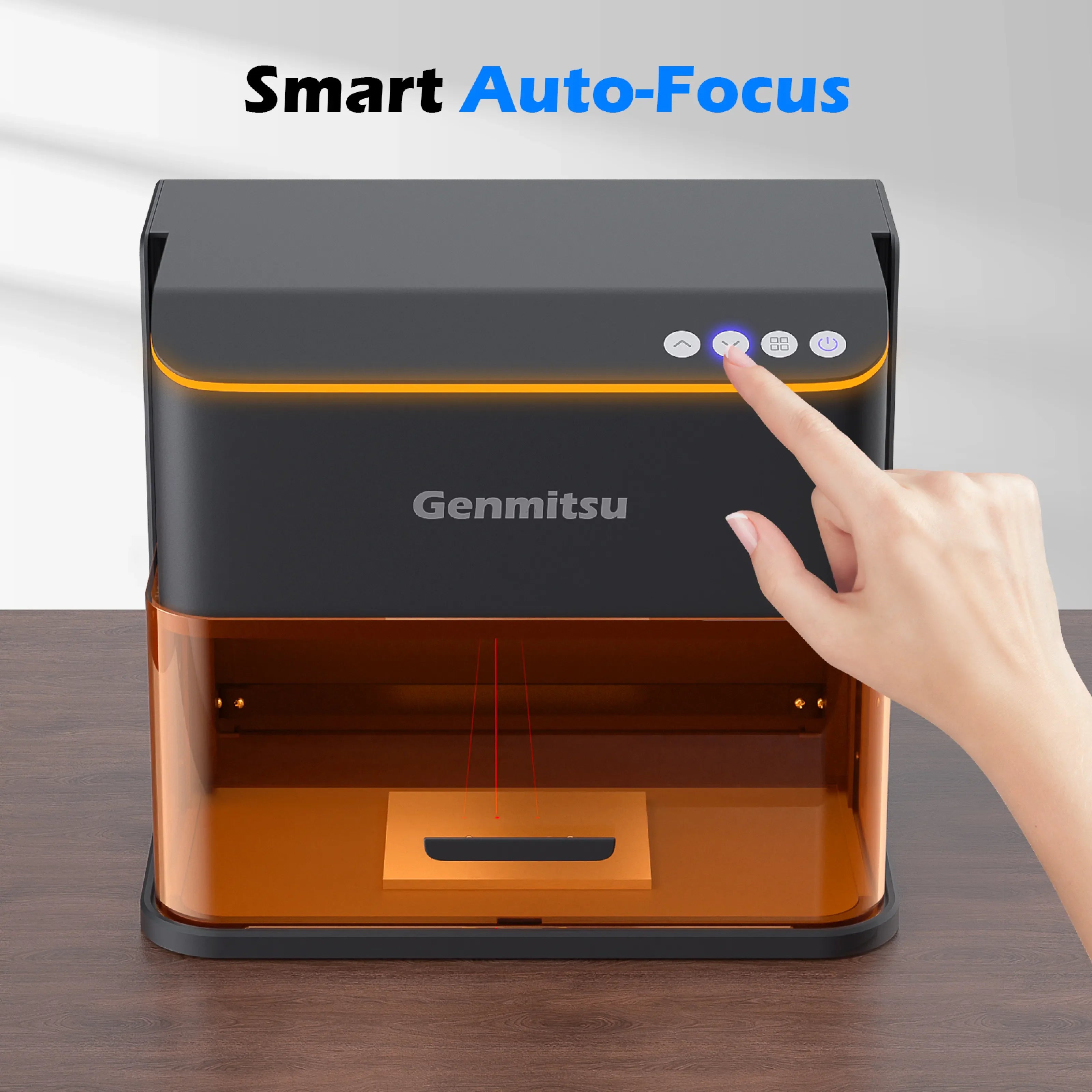

Smart Auto-Focus, Zero Guesswork
Dual red-light positioning and electric auto-lift focus ensure perfect focus in seconds—no manual knobs, no trial-and-error.
Wide Software & Offline Work Support
Compatible with Genmitsu APP, CutLabX (PC + Mobile APP), GRBL (LightBurn, LaserGrbl).
Supports multiple formats: JPEG/BMP/PNG/SVG/DXF/PLT/HPGL (vector). Works offline via SD Card/USB/Wi-Fi APP/AP—no need to connect to a computer all the time.
Light Preview & Electric Lift
Dual red light positioning + electric lifting focus (one-key operation), easier and more accurate than manual focusing, saving time for beginners and professionals alike.
Class 1 Safety, Fully Enclosed

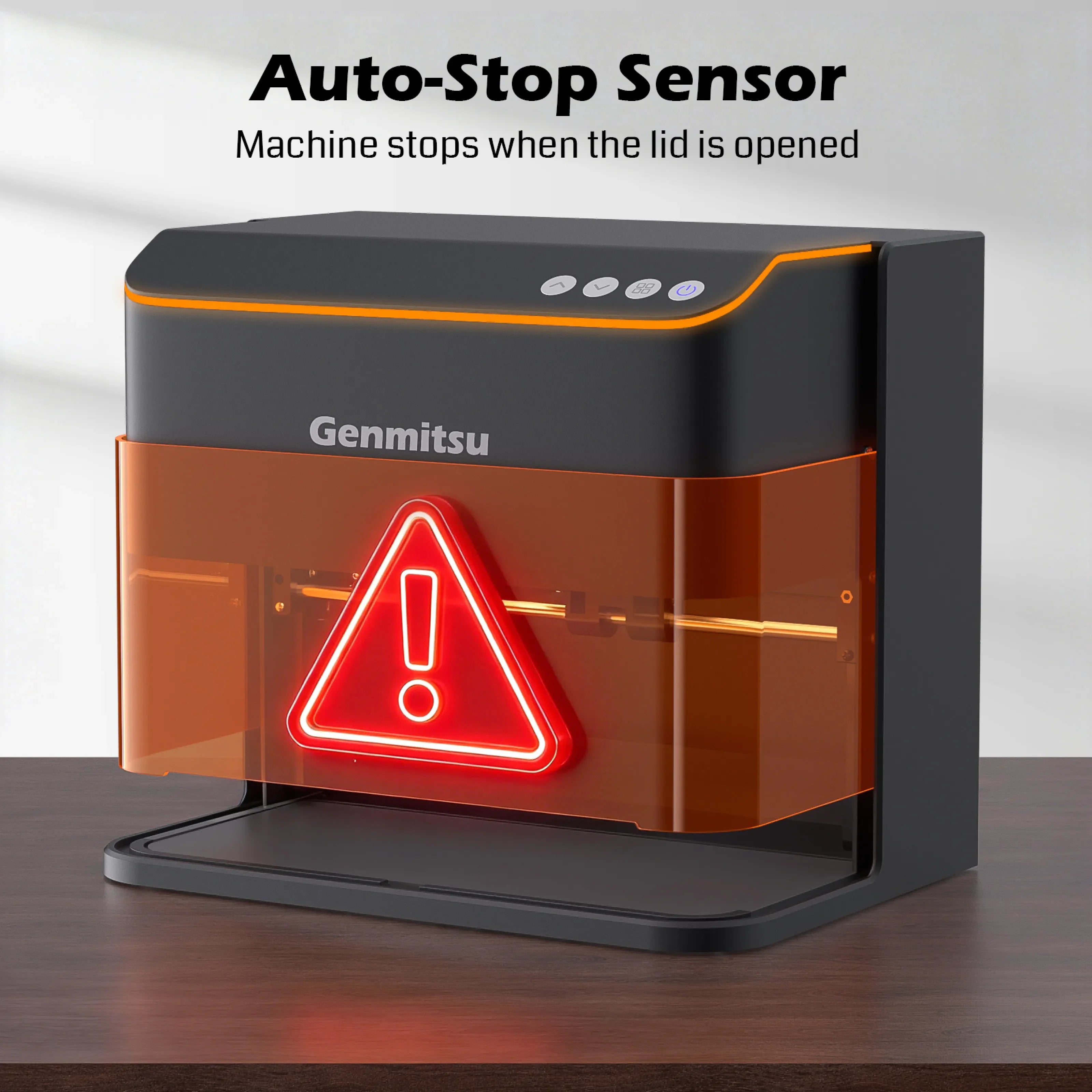

Designed for home, studio, and classroom use, Kintix features a Class 1 enclosed design, lid-open auto-pause, emergency stop, and overheat protection—powerful yet safe.
Specification
Specification
| Model | Kintix |
| Main Material | ABS + high-strength metal |
| Laser Wavelength | 455 nm |
| Engraving Speed | 90000 mm/min |
| Laser Service Time | > 10000 hours |
| Engraving Accuracy | 0.01 mm |
| Engraving Size | 200 × 100 mm |
| Supported Engraving Height | 50–80 mm |
| Machine Power | < 60W |
| Data Transmission | USB (serial wired); Wi-Fi wireless |
| Cooling Method | Air cooling |
| Applicable Materials | Paper, wood, plastic, leather, fabric, cardboard, stone, ceramics, stainless steel, coated metal, and other opaque materials |
| Input Voltage |
5W: DC 12V 4A 10W: DC 12V 5A |
| Supported Systems | Windows / macOS / Android / iOS |
What‘s in the box
What‘s in the box
- 1x Kintix Laser Machine
- 1x TF Card & Card Reader
- 1x Calibration Card
- 2x Kraft Papers
- 1x Plywood
- 1x DC12V Power Supply
- 1x Cable (Connect Kintix to PC)
- 1x Marker
- 1x Brush
- 1x User Manual
