GenmitsuSKU: 101-63-4AXIS-57

Rotary Module Kit for PROVerXL 4030, 6050 Plus CNC Router

$269.00 FREE SHIPPING
Shipping calculated at checkout.
Ship to: USA

Free shipping on all U.S. orders of $50+

Easy Returns and Exchanges with 12-month warranty

30 Days Money Back Guarantee

For CA residents, click here for Proposition 65 information
  • Description
  • Specification

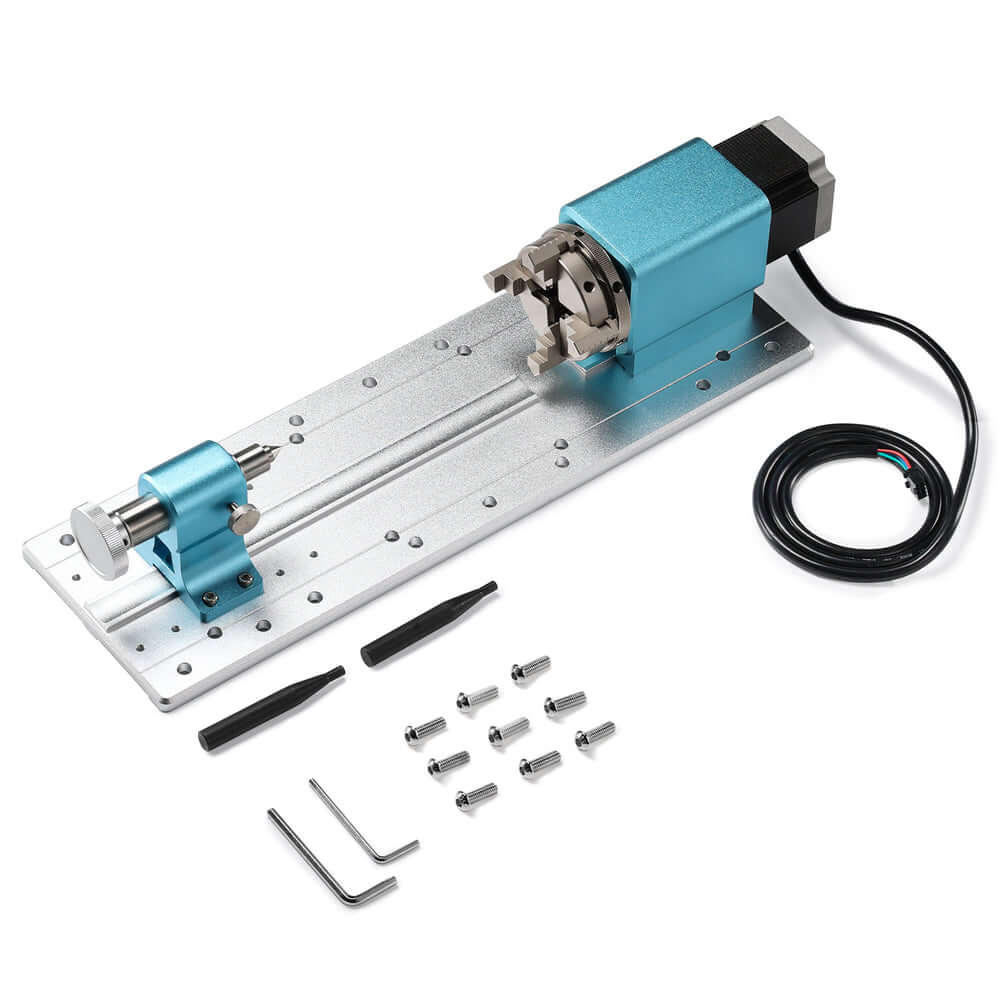

  • What‘s in the box
  • Reviews & QA
$269.00
Description

Product Introduction

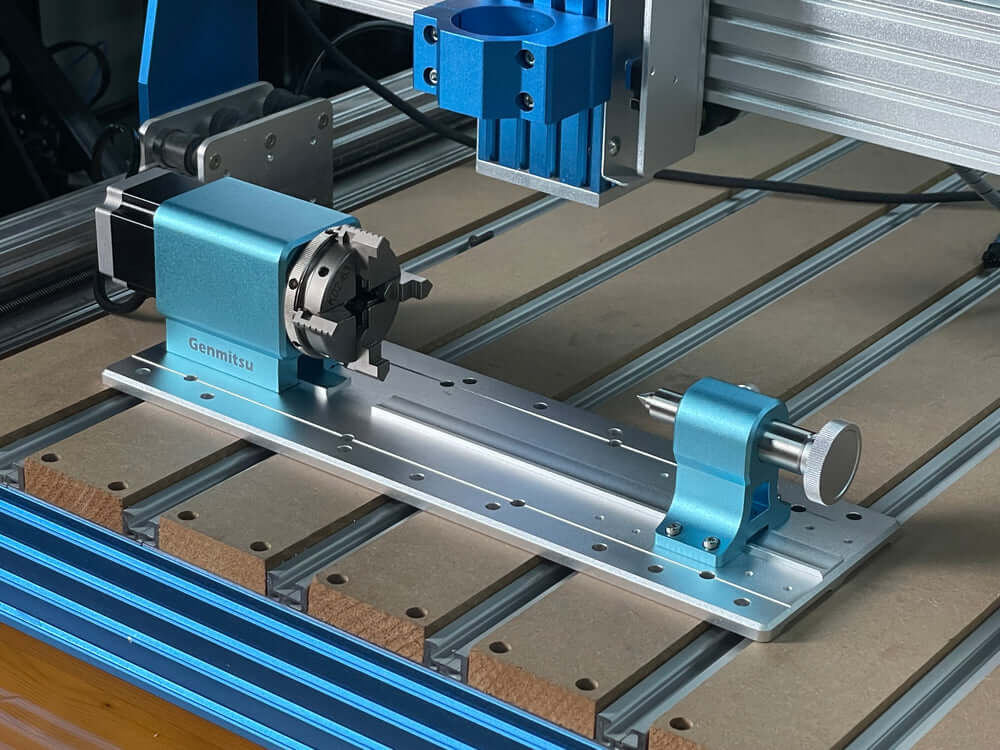

Unlock a new dimension of CNC creativity with the Genmitsu Rotary Module Kit, designed to seamlessly integrate with your PROVer XL 4030 V1 or PROVer XL 6050 Plus CNC machine. This powerful upgrade empowers you to carve intricate designs from multiple angles, explore 3D rotary carving, and tackle larger projects with ease, all while delivering precision and versatility. Equipped with a high-torque NEMA23 motor and user-friendly features, this kit is your gateway to transforming industrial components, artistic masterpieces, and detailed prototypes with unparalleled accuracy and efficiency.

Rotary Module Kit for PROVerXL 4030, 6050 Plus CNC Router Details

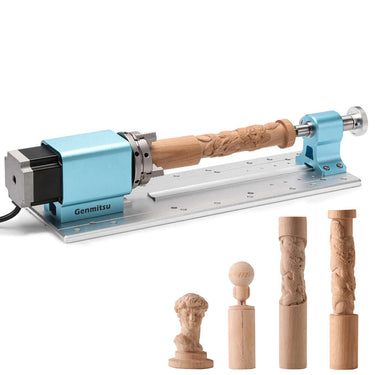

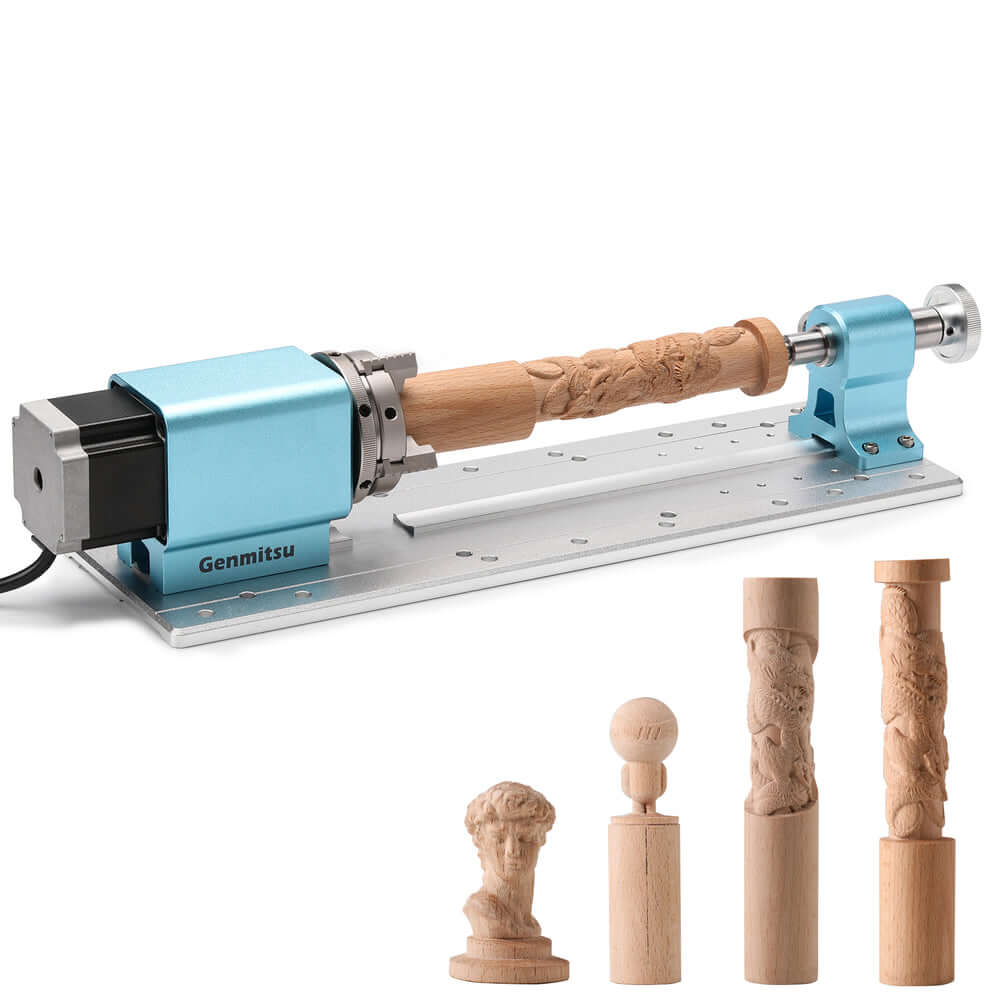

  • Discover the Possibilities: The Genmitsu Rotary Module Kit enhances the PROVer XL 4030 V1 and PROVer XL 6050 Plus CNC machines, enabling multi-angle carving, 3D, and hybrid 2D rotary carving or laser work with compatible software.
  • NEMA23 Planetary Geared Stepper Motor: The NEMA23 motor delivers high torque and power, outperforming belt-driven rotary modules for precise and forceful workpiece rotation.

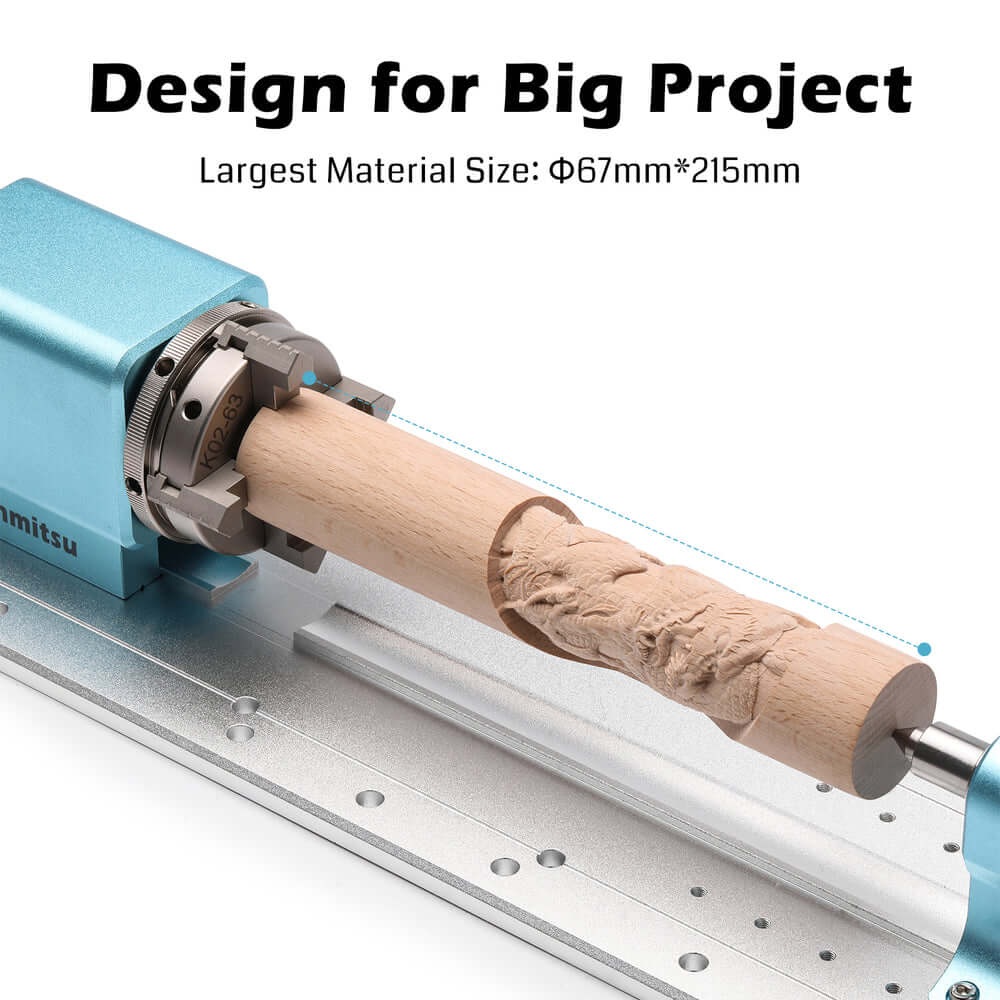

  • Larger Compatibility: Tailored for big projects, this kit handles materials from 15-275mm (without tailstock) or 15-215mm (with tailstock) and diameters of 2-67mm, perfect for industrial parts, art, and prototypes.
  • Precision Control: A 10:1 reduction ratio ensures precise control with a 0.1° minimum angle and a 480° per second maximum speed for fast, accurate performance.
  • User-Friendly: Comes with clear step-by-step instructions and dedicated after-sales support for a smooth setup and operation experience.
Specification

SPECIFICATIONS

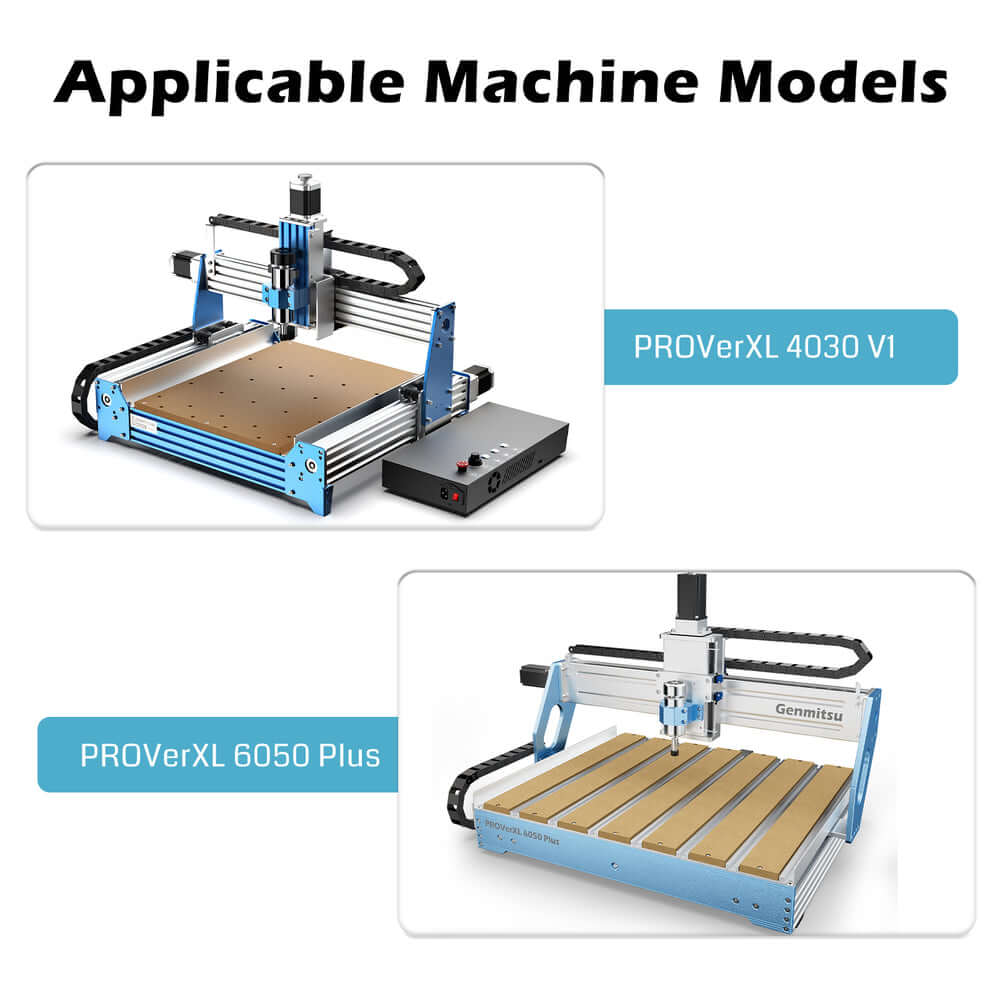

  • Compatible CNC Machine

    Genmitsu PROVer XL 4030 V1/PROVer XL 6050

  • Clamped Material Size (with Tailstock)

    15-215mm

  • Clamped Material Size (without Tailstock)

    15-275mm

  • Clamped Material Diameter (Forward Mounting)

    2-37mm

  • Clamped Material Diameter (Reverse Mounting)

    20-67mm

  • Tailstock Spacing Adjustment

    5 positions, 16mm spacing, 16-81mm range

  • Tailstock Center Adjustment Range

    0-30mm

  • Direct Electric Motor

    NEMA23 Planetary Geared Stepper

  • Gear Ratio

    0.417361111

  • Max Rotate Speed

    480°/S

  • Unidirectional Maximum Rotation Angle

    33512 x 360°

  • Center Height

    60mm

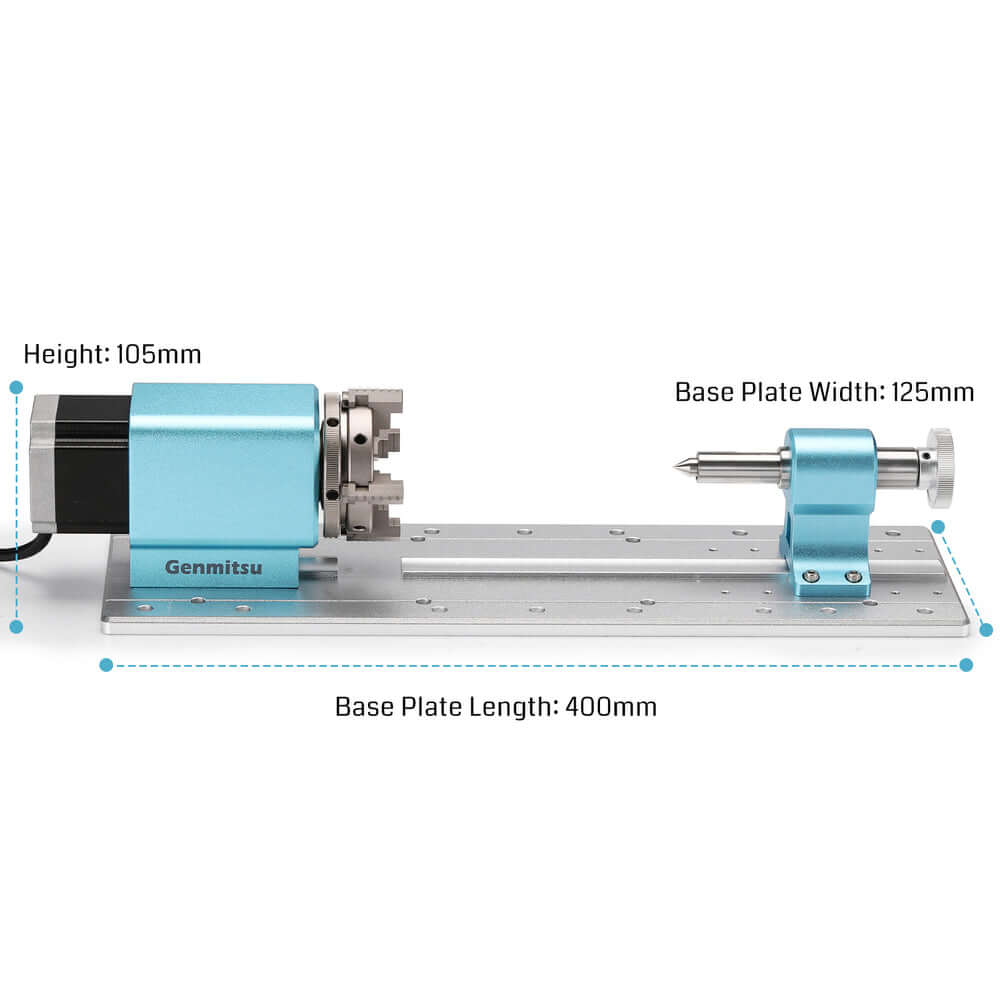

  • Size

    470 x 125 x 105mm (18.50” x 4.92” x 4.13”)

Reviews & QA

Reviews & QA

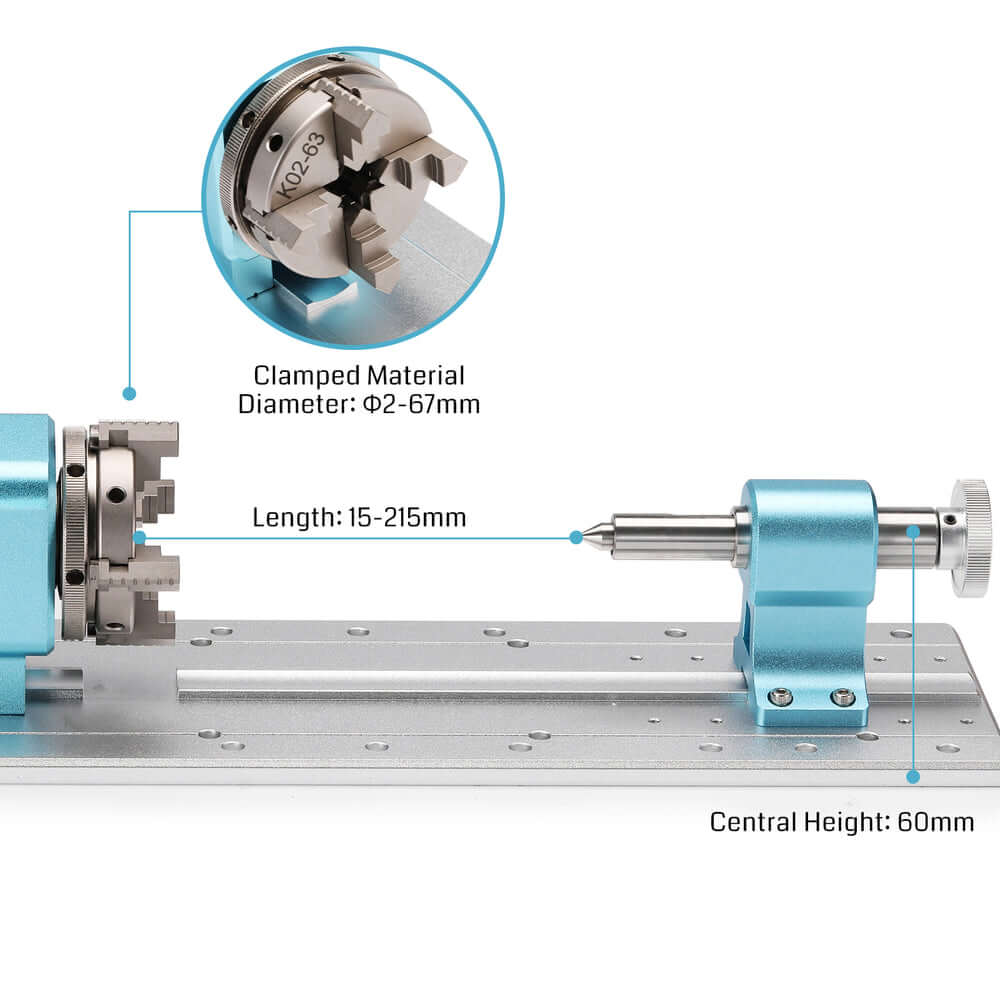

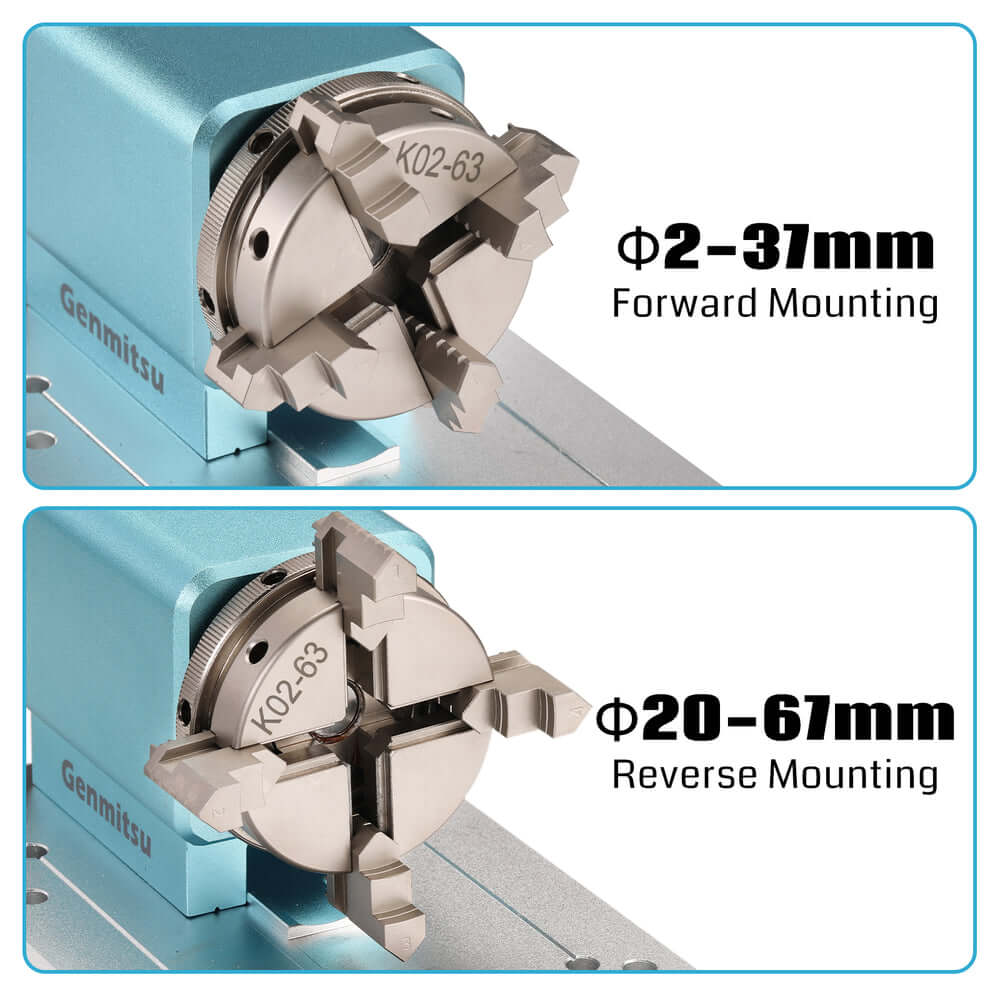

The rotary module's clamp with forward and reverse mounting options for a wider range of sizes.

  • Forward Mounting: 2-37mm
  • Reverse Mounting: 20-67mm
  • User Manual
