Description

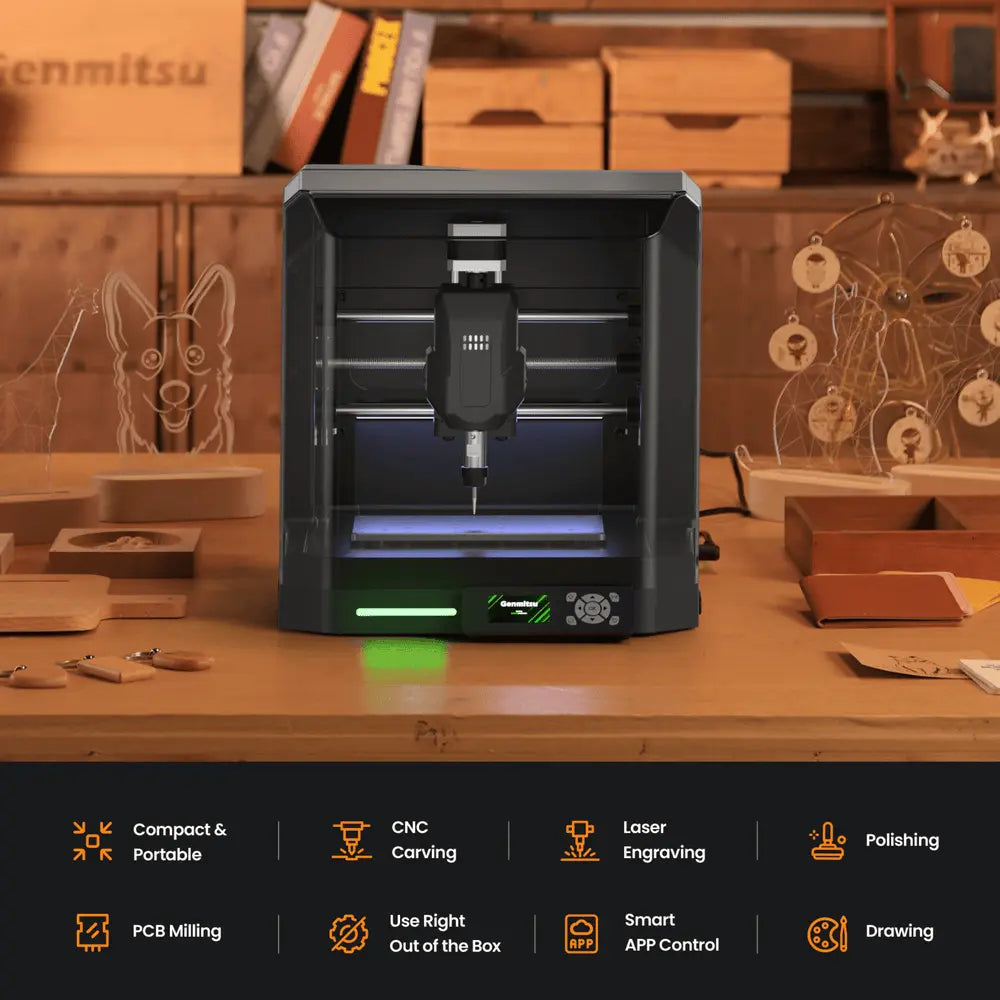

CNC Carving
Whether you're a beginner or hobbyist, Cubiko empowers you to make your creative ideas a reality. Supports carving on various materials, including wood, PCBs, and soft metals.
Designed for PCB Milling

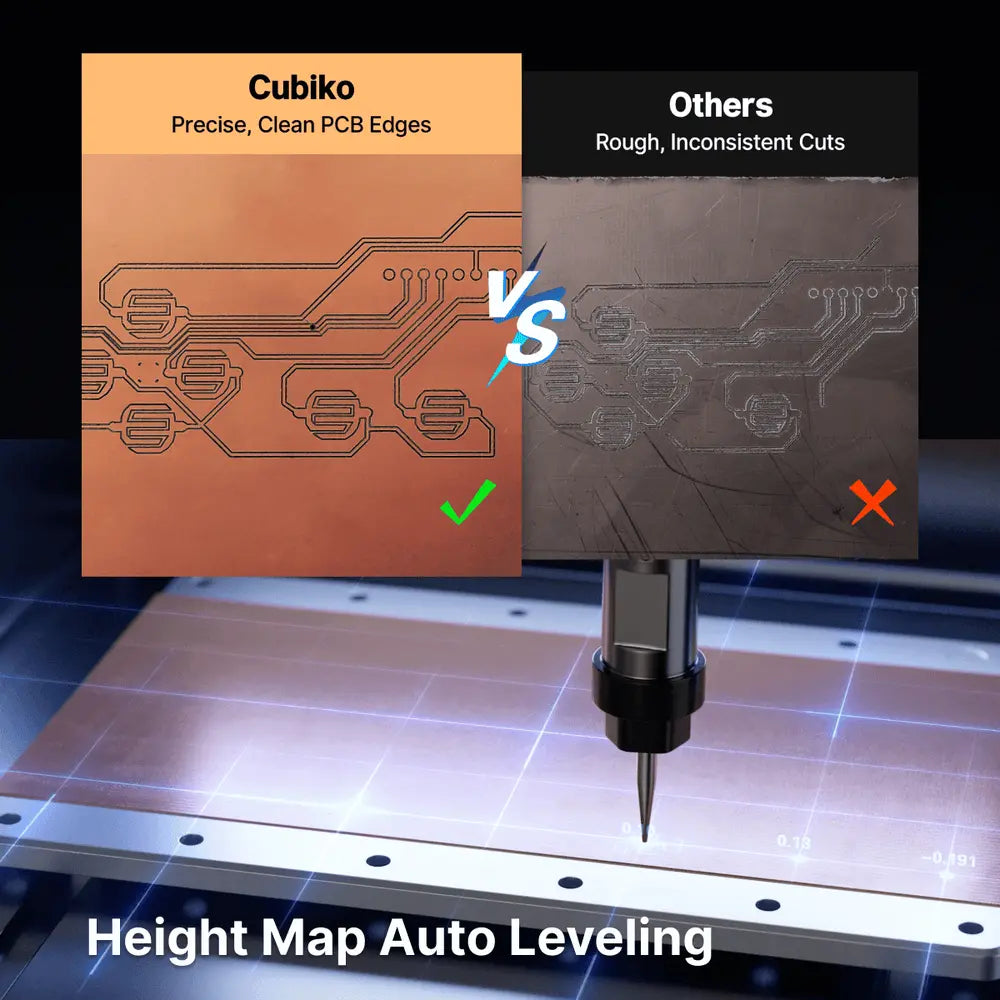

Uneven surfaces often cause milling issues. Cubiko features Height Map Auto Leveling, which measures multiple points and automatically adjusts for height compensation, ensuring more accurate PCB milling.
PCB milling requires high precision, which ordinary CNC Routers often can't achieve. Our machine offers ±0.1mm accuracy, ensuring clear cuts for circuits.
Laser Engraving
With the laser module, you can effortlessly engrave delicate designs, intricate patterns, and even photos on multiple materials, like wood, leather, and glass, bringing your DIY projects to life.
*The laser module needs to be purchased separately.
Precise Drawing
Enjoy ultra-high precision for intricate designs and detailed patterns. This fast, efficient tool significantly reduces drawing time, ideal for large projects or batch production.
*The drawing module needs to be purchased separately. .
Polishing
Never worry about scratches again—our polishing feature renews your screens to their original shine.
*The polishing module kit is coming soon.
Use Right Out Of Box
No complicated assembly needed - just take it out of the box, plug it in, and start creating. We provide a clear quick-start guide to help you get started effortlessly.
CNC Controls Options
Operate your CNC seamlessly through multiple control modes: computer, our proprietary APP, or the built-in control panel. The Genmitsu APP offers a user-friendly, smart interface, while the control panel comes pre-installed, enabling hassle-free operation directly on the machine. The Cubiko is also fully compatible with all GRBL software on the market.
Support Multiple Materials
Cubiko supports engraving on a wide range of materials, including wood, acrylic, aluminum, brass, and more, making it a versatile choice for various creative and industrial applications.
The CNC engraving and laser engraving parameter reference list can be found here.

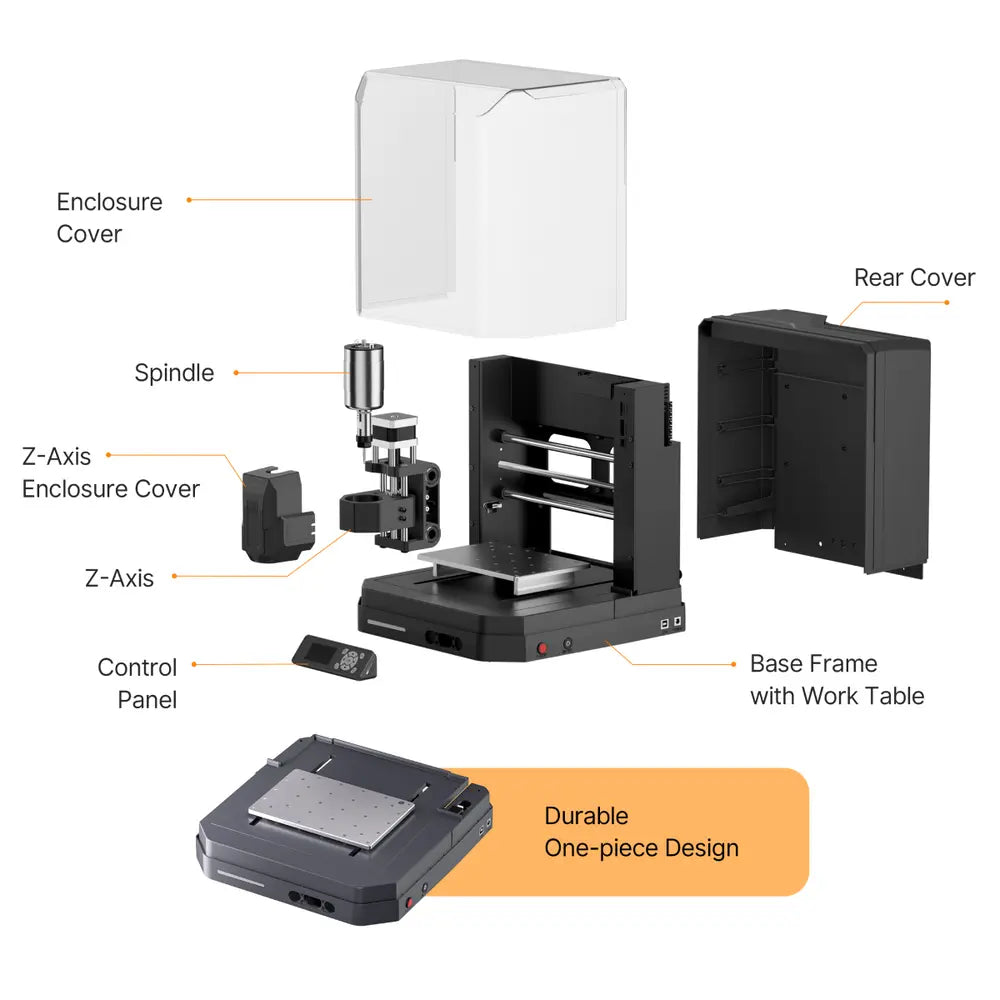

Enclosed Design
For dust-free and low-noise operation
With the enclosure cover on, the operational noise level is around 60dB.
Auto Z-Probing
Effortless setup and quick start
Smart Protection
Auto-stop when the door opens
🔍 Click here to explore the Genmitsu CNC router collection
🔍 Click here to explore the upgraded parts of CNC router ecosystem
Specification
Specification
| Basic info | Software | ||
| Machine's Footprint (L*W*H) | 11.81'' x 13.19'' x 12.52'' (300 x 335 x 318mm) |
Control Software | Candle, UGS, etc. |
| Work Area (X,Y,Z) | 5.91'' x 4.33'' x 1.57'' (150 x 110 x 40mm) |
Compatible CAD/CAM Software | Easel, Fusion 360, Carveco Maker, Vectric, SolidWorks, AutoCAD, LightBurn etc. |
| Gantry Clearance (Z) | 2.28'' (58mm) | Connectivity | USB / WiFi |
| Weight | 17.7 lbs (7.85kg) | Dedicated Control | Genmitsu APP |
| Machine Power | 120W | ||
| Spindle Wattage | 75W | Laser Module (Add-on) | |
| Collet Type | ER11 with 1/8“ Standard Shaft | Laser Power | 5.5W |
| Max RPM | 10,000 RPM | Laser Type | Compressed Blue Diode Laser |
| Max Speed | 2,000 mm/min | ||
| Precision | ±0.1mm | Drawing Module (Add-on) | |
| Lead Screw | Φ8mm | Pen Diameter Range | Φ3-18mm |
| Stepper Motors | NEMA 17 | ||
| MCU | 32-bit | Polishing Module (Coming Soon) | |
| Volt Input | 100-240V AC | Size | 3.175mm Collet (1/8-in ) & Polishing Tool Set |
What‘s in the box
What‘s in the box
- 1x Machine (Built-in control panel and Wi-Fi module)
- 1x Power Supply
- 1x USB Cable
- 1x Alligator Clamp for PCB Tool Setting
- 2x Aluminum Clamp
- 10x Milling Bits （7x 30 degree V-Bit, 3x 1/8” Drill Bit)
- 2x Wood Chip
- 2x PCB Copper Clad Laminate
- 2x Wrench
- 1x Spare Limit Switch
- 1x ER 11 Collet
- 4x EVA Feet
- 1x SD Card and Card Reader
- 1x Cable Ties
- 1x User Manual
